12 dBi Sectoral Antenna

[BOKAKOB]

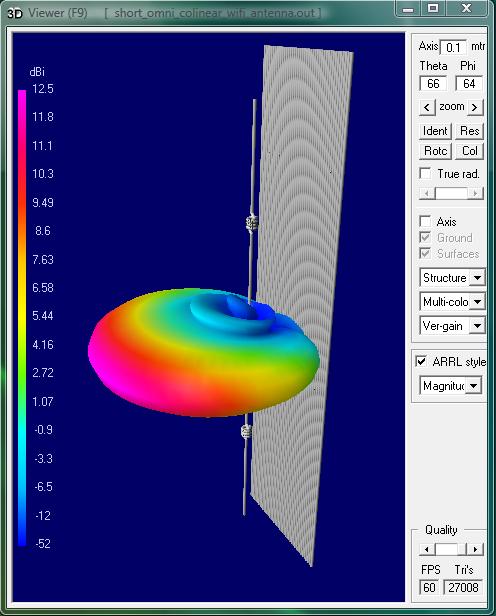

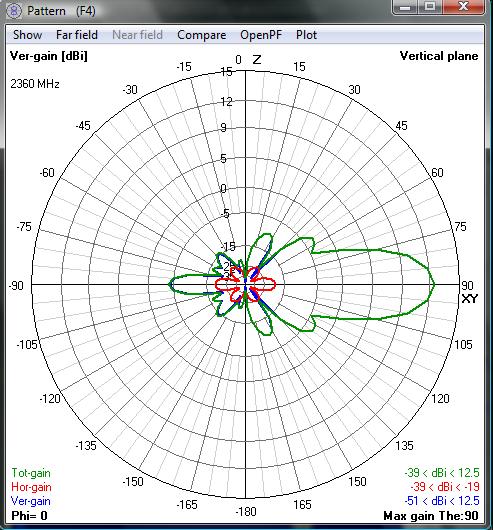

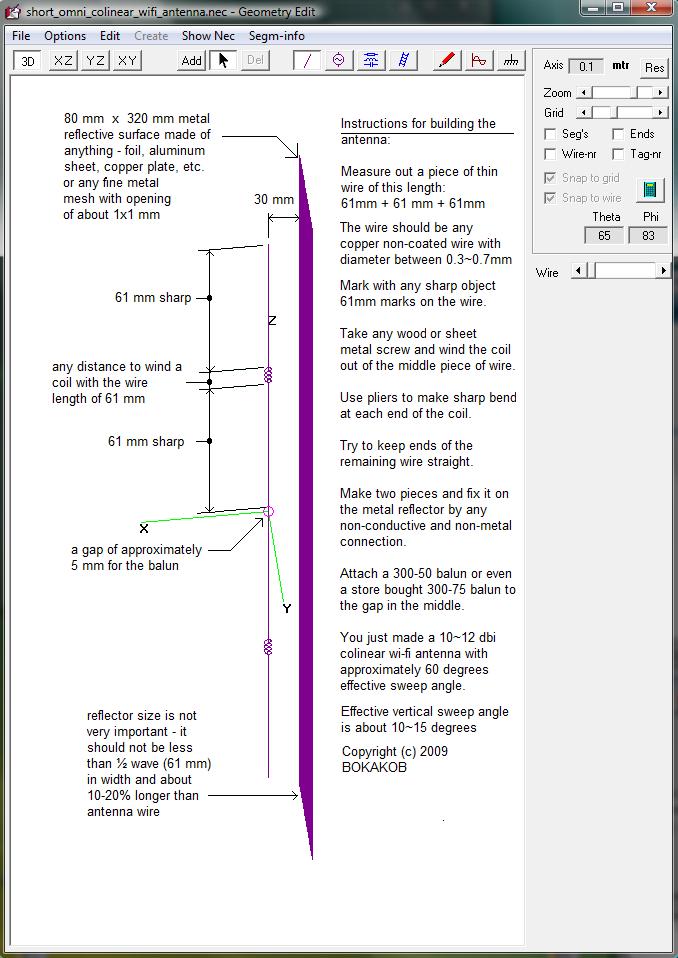

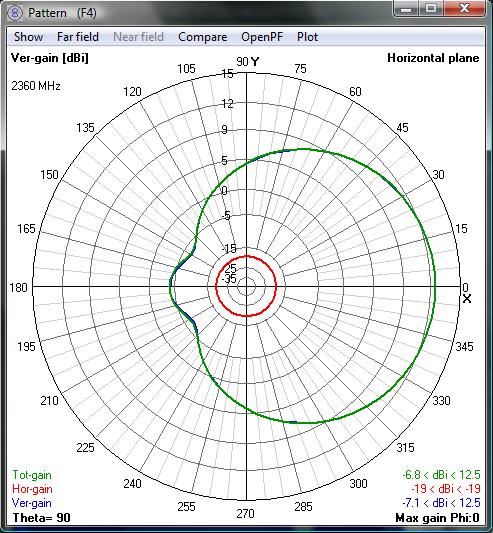

Here is 12 dBi 70 degrees horizontal sweep sectoral antenna:

http://www.instructables.com/id/8226...na-with-60H-x-

[J.Forfun]

BOKABOB
Thanks for your postings
Some of your images need login/pw for closeup viewing.
Could you upload your pictures to our site? Step by step manual is here:
http://www.lan23.ru/forum/showthread.php?t=1308

[BOKAKOB]

Thank you for corrections, here are better files. Please let me know if this antenna worked for you.

[mcWit]

Many thanks. I think that it is an interesting variant.
What is the VSWR of this antenna?
Add graph Gain vs. Frequency.
